IXYS IXTN400N20X4 Series MOSFETs
Introducing IXTN400N20X4, the latest addition to the ultra junction x4-class power MOSFETs
Power efficiency and reliability are crucial in today’s fast-paced world.
The latest addition to the 200V Ultra Junction X4-Class Power MOSFETs line up.
IXYS’ IXTN400N20X4 Power MOSFET features low on-state resistance and is the go-to choice for applications where minimal on-state losses are required.

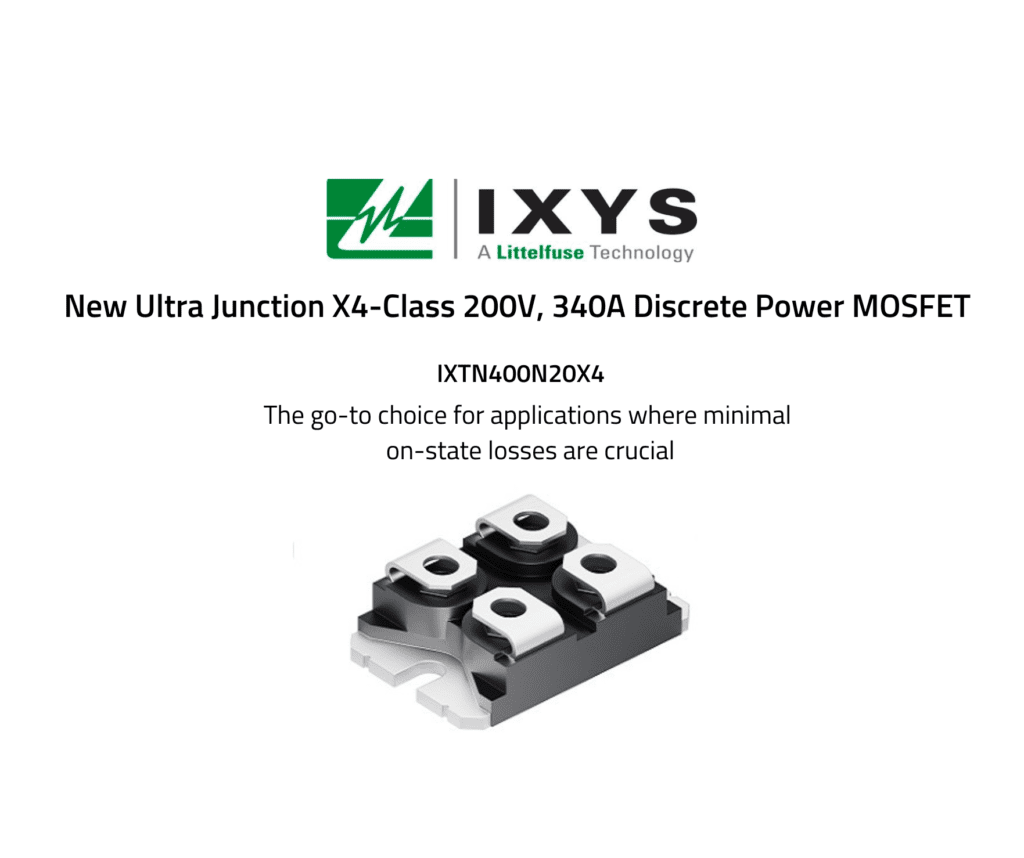

IXTN400N20X4
Features:
- On-state resistance: RDS(on) = 3mΩ @ Tvj = 25 ºC
- High nominal current rating: 340A @Tc = 25°C
- Low gate charge: Qg = 348 nC
- Low thermal impedance: RthJC = 0.18 kW
- Aluminum-nitride ceramic-based isolated SOT-227B package
Benefits:
- Low conduction losses
- Minimised parallel connection effort
- Simplified driver design, minimal driver losses
- Simplified thermal design
- Increased power density
Markets/Applications:
- Battery energy storage systems (BESS)
- DC load switch
- Battery chargers
- Battery formation
- Power supplies
GD Rectifiers is an official distributor of IXYS semiconductors and holds a large range of IXYS components in stock. GD Rectifiers’ sales team have direct access to the Littelfuse technical team and liaise with their sales teams daily to secure the best possible pricing and lead times on non-stocked components. GD Rectifiers can assist with new designs, spares and repairs for failures or routine maintenance work and refurbishments.
For further information on IXTN400N20X4 or to discuss an IXYS enquiry with our sales team, please contact us on 01444 243 452 or email [email protected].
